Luxurious Home Cinema
Background
When luxury interior designers Woodhouse & Law contacted us to co-design a premium entertainment experience mirroring their clients luxury entertainment space in Florida, we left no stone unturned in our desire to extract the maximum potential from the space and budget afforded.
‘A solution delivering highest quality contemporary film and media’
Despite no face to face meetings with the client, we were able to design and refine the brief
remotely, providing a solution delivering highest quality contemporary film and media sources

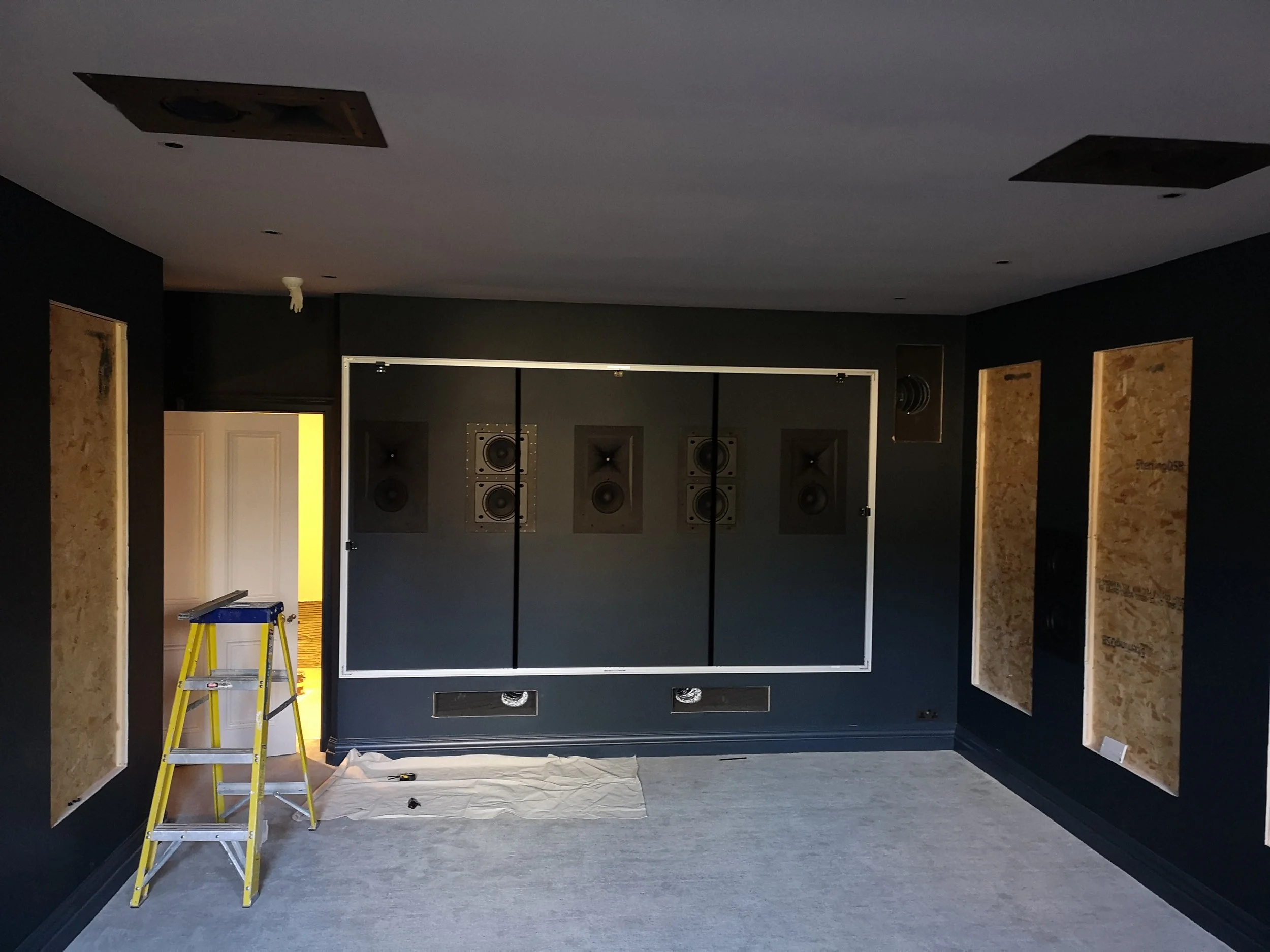

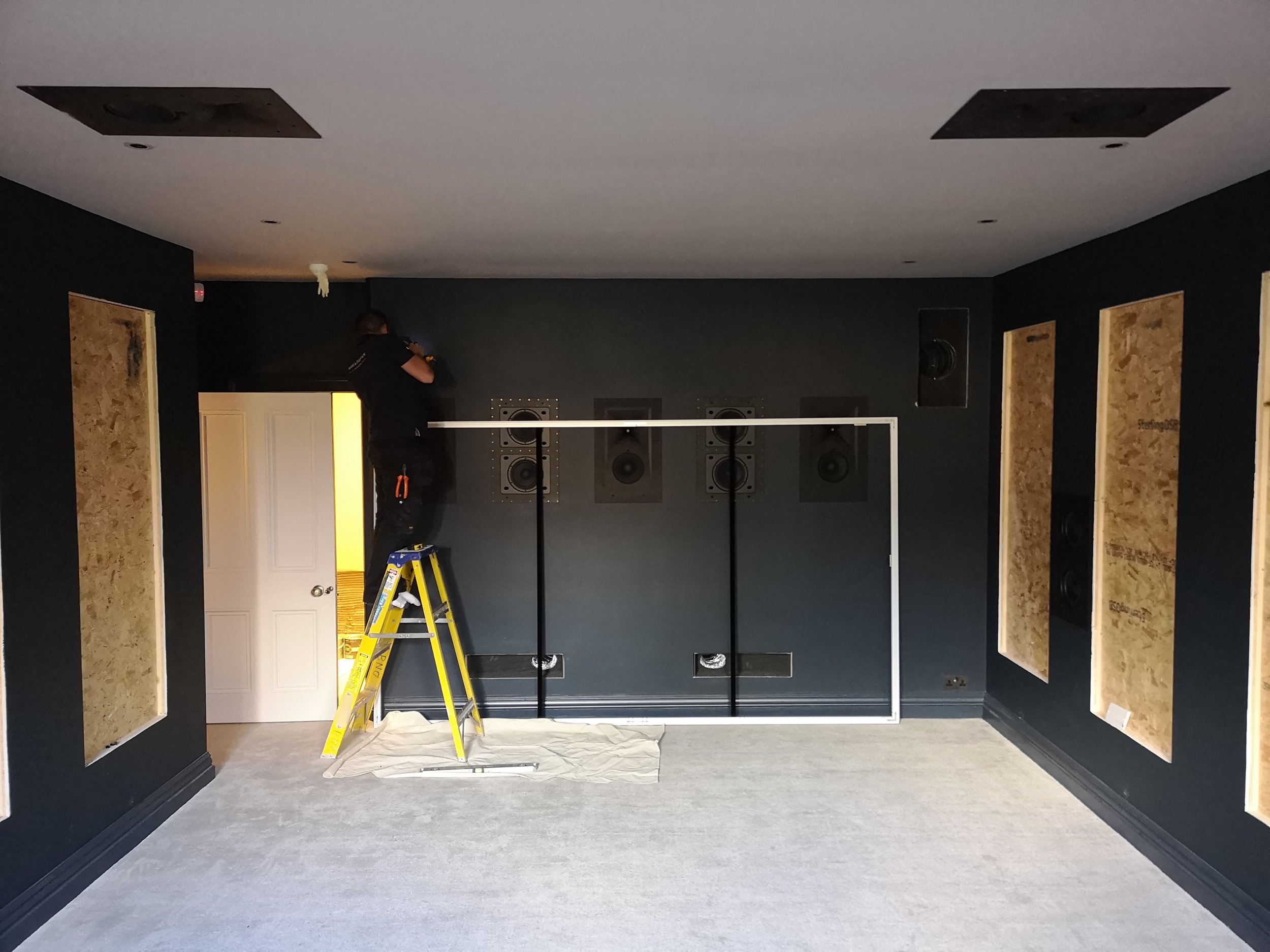

through a 7.4.4 JBL Synthesis Dolby Atmos theatre system, with Sony laser projection onto a

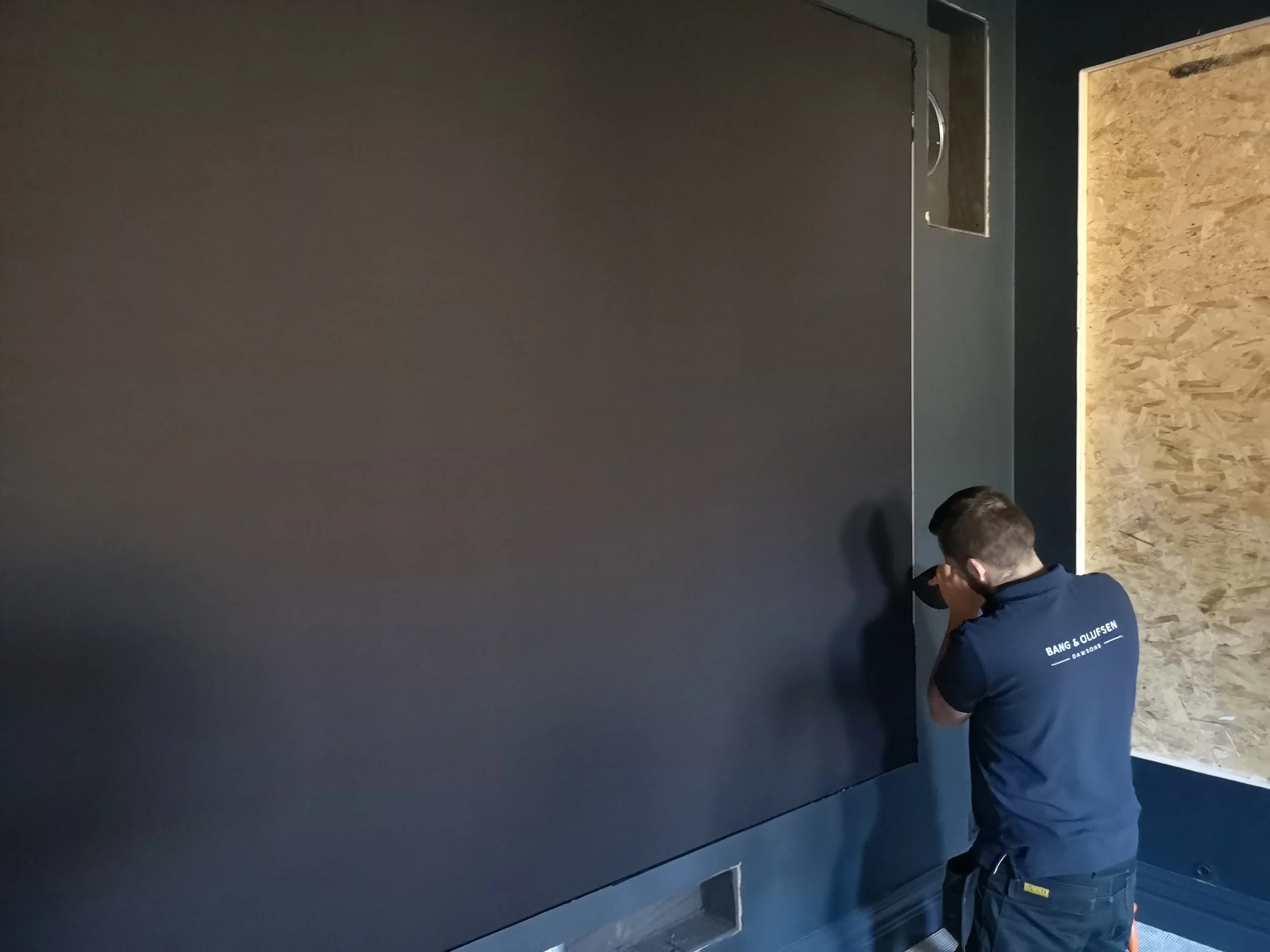

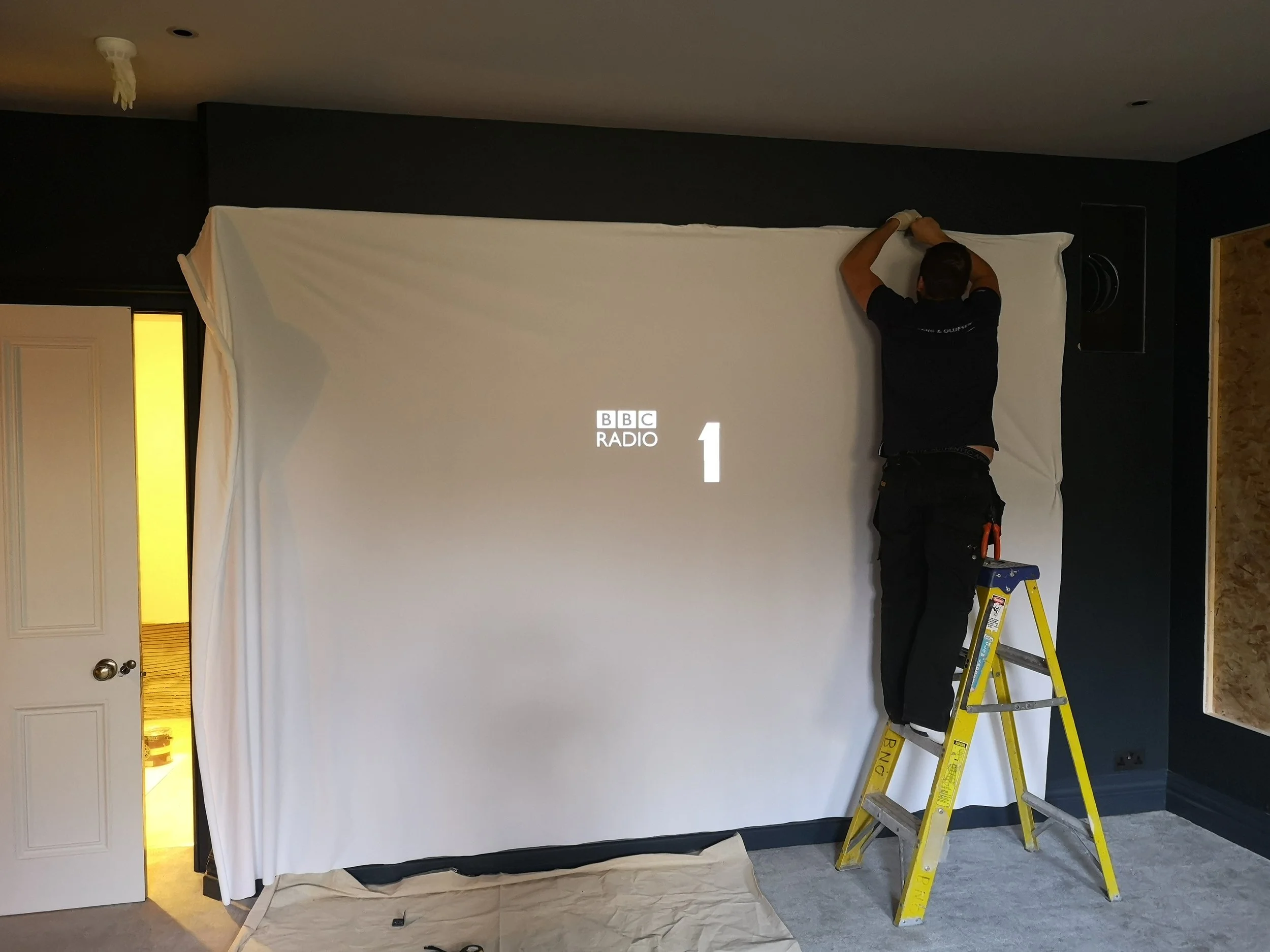

3.2m Ultimate Screens 16;9 acoustically transparent 4K projection screen.
To complement the quality of picture and sound a Kaleidescape 4K media server was specified
delivering video quality better than most commercial theatres along with access to media
streaming services, Sky and terrestrial TV.
‘A Kaleidescape 4K media server was installed delivering video quality better than most commercial theatres.’

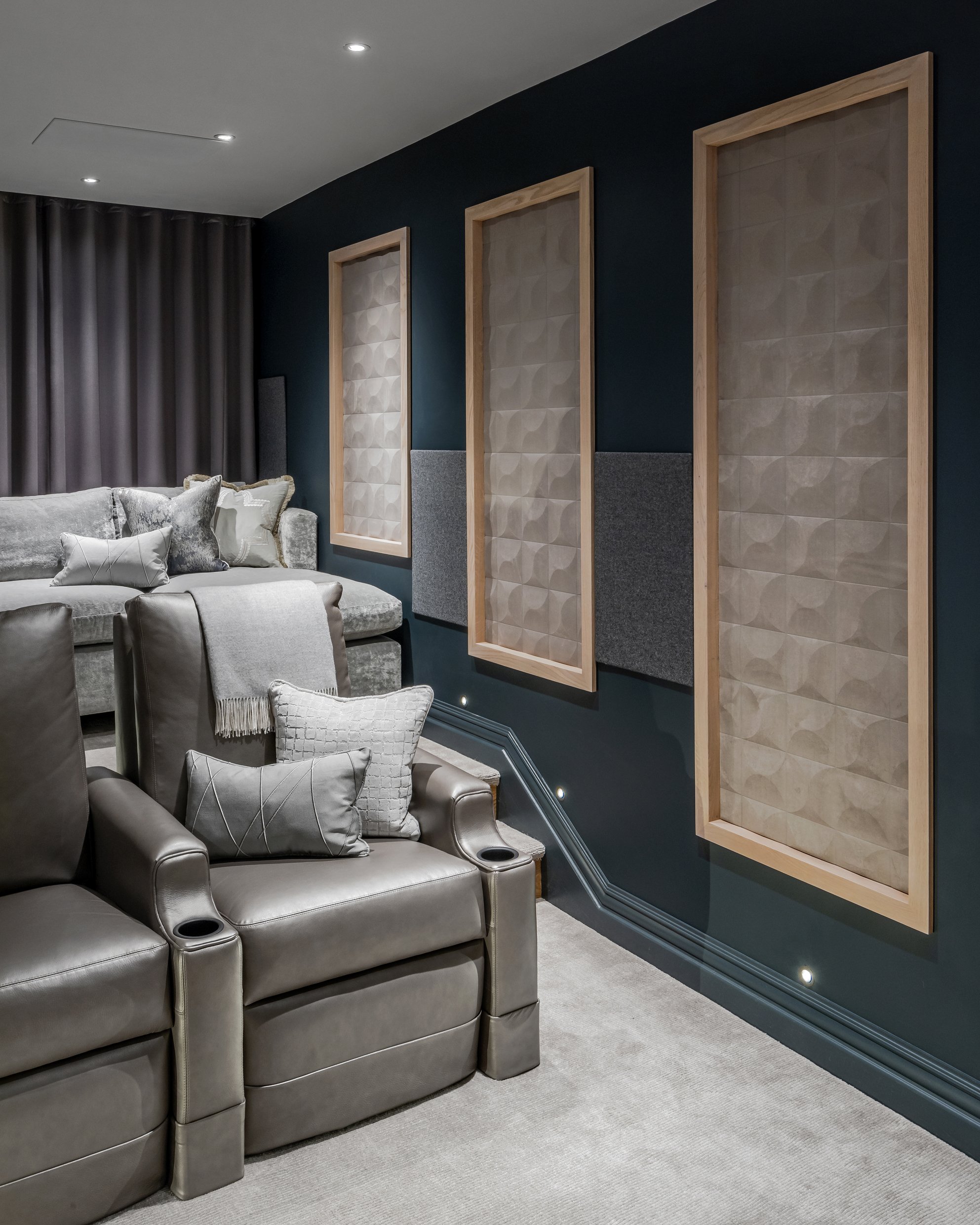

Luxury picture and sound was complemented with luxury massaging cinema seating from Fortress, programable Lutron scened lighting and with intuitive touchscreen control from Crestron.
Components
Projector:
Sony VPL-VW870ES 4K Laser

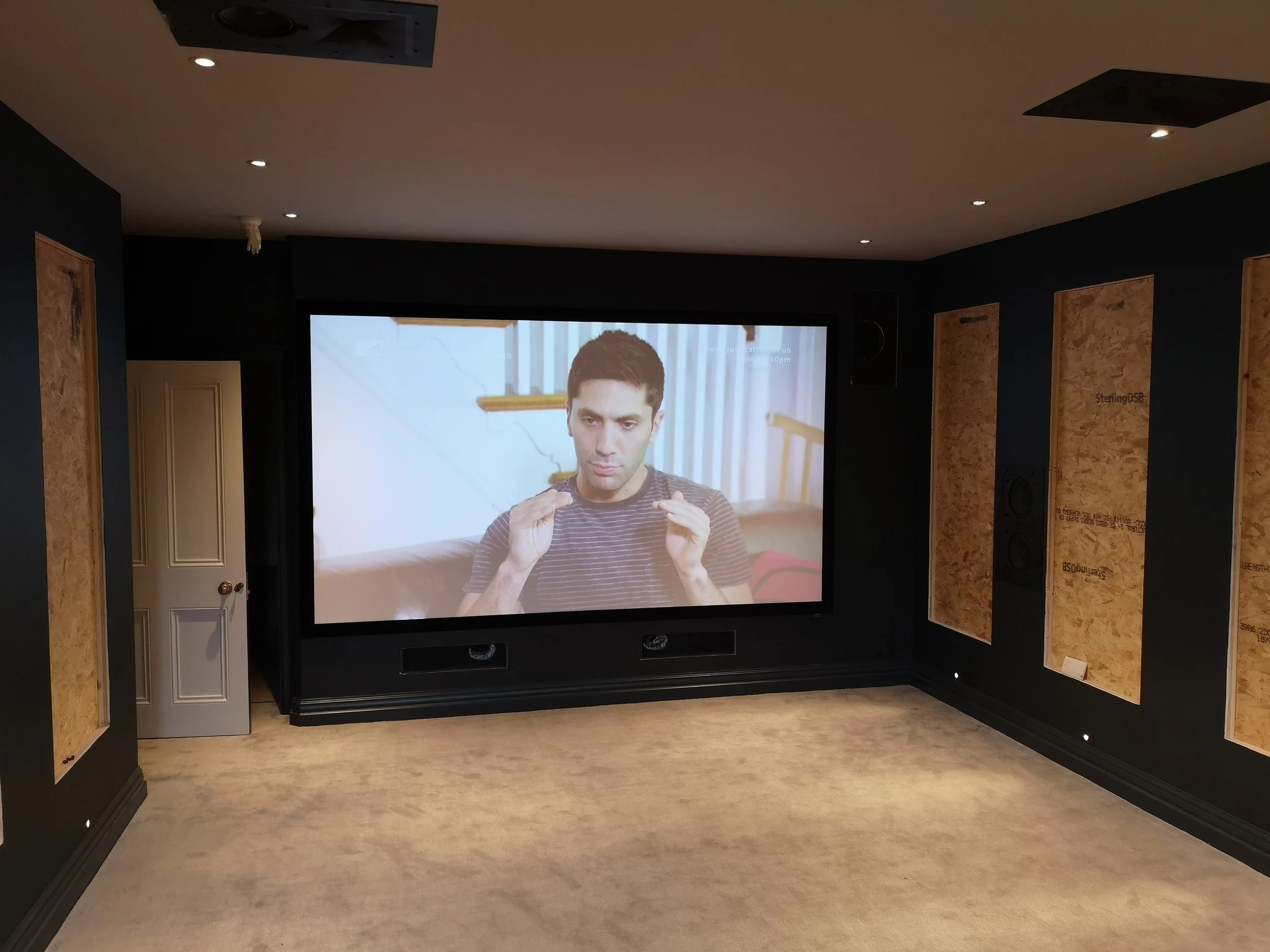

Projection Screen:
Ultimate Screens 3.2m 16;9 Acoustically Transparent

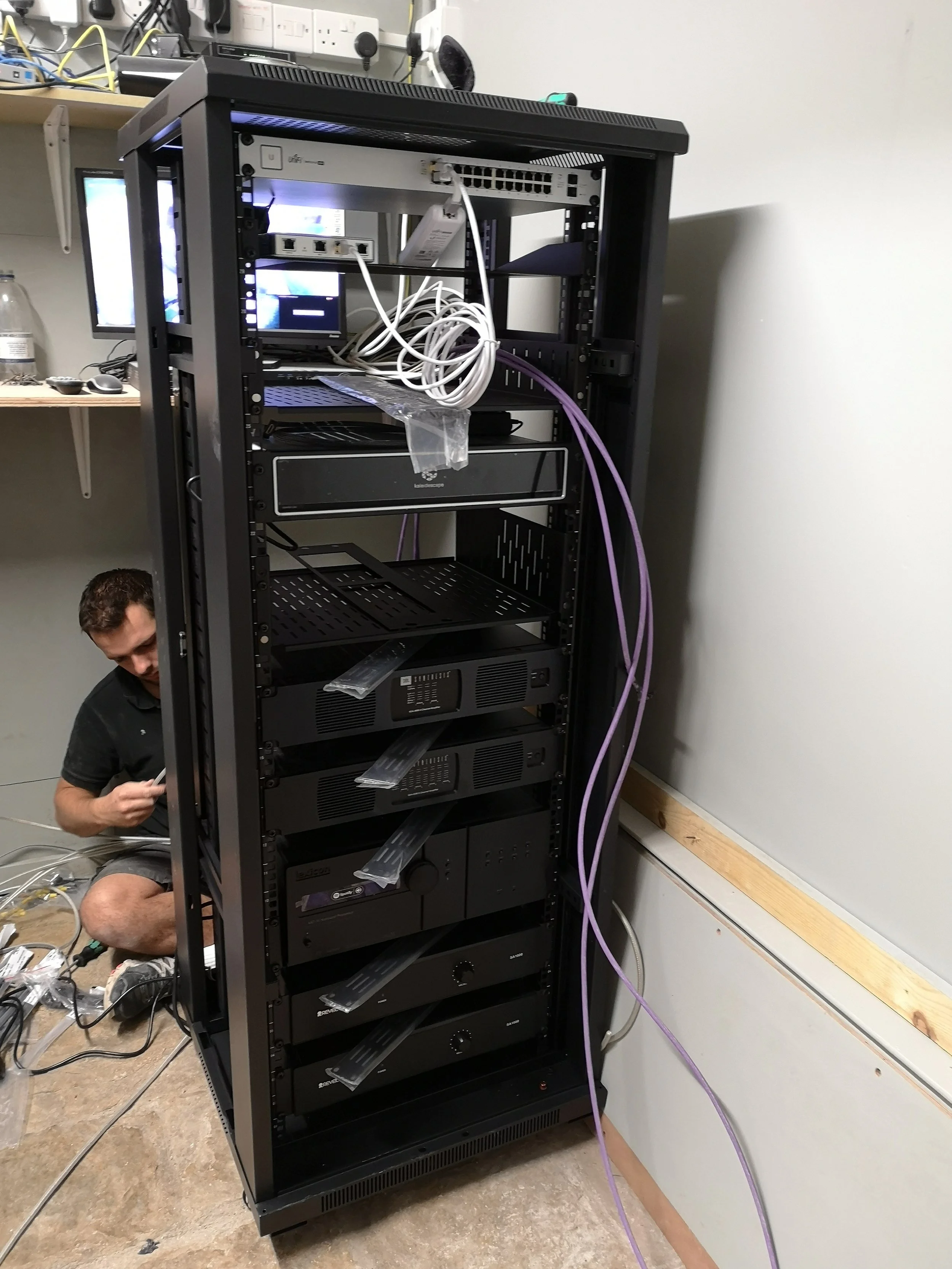

AV Processor:
Lexicon MC10
Power Amplifiers:
JBL Synthesis SDA8300 8 x300w
JBL Synthesis SDA4600 4 x400w
JBL Synthesis SA1000 2 x700w
JBL Synthesis SA1000 2 x700w

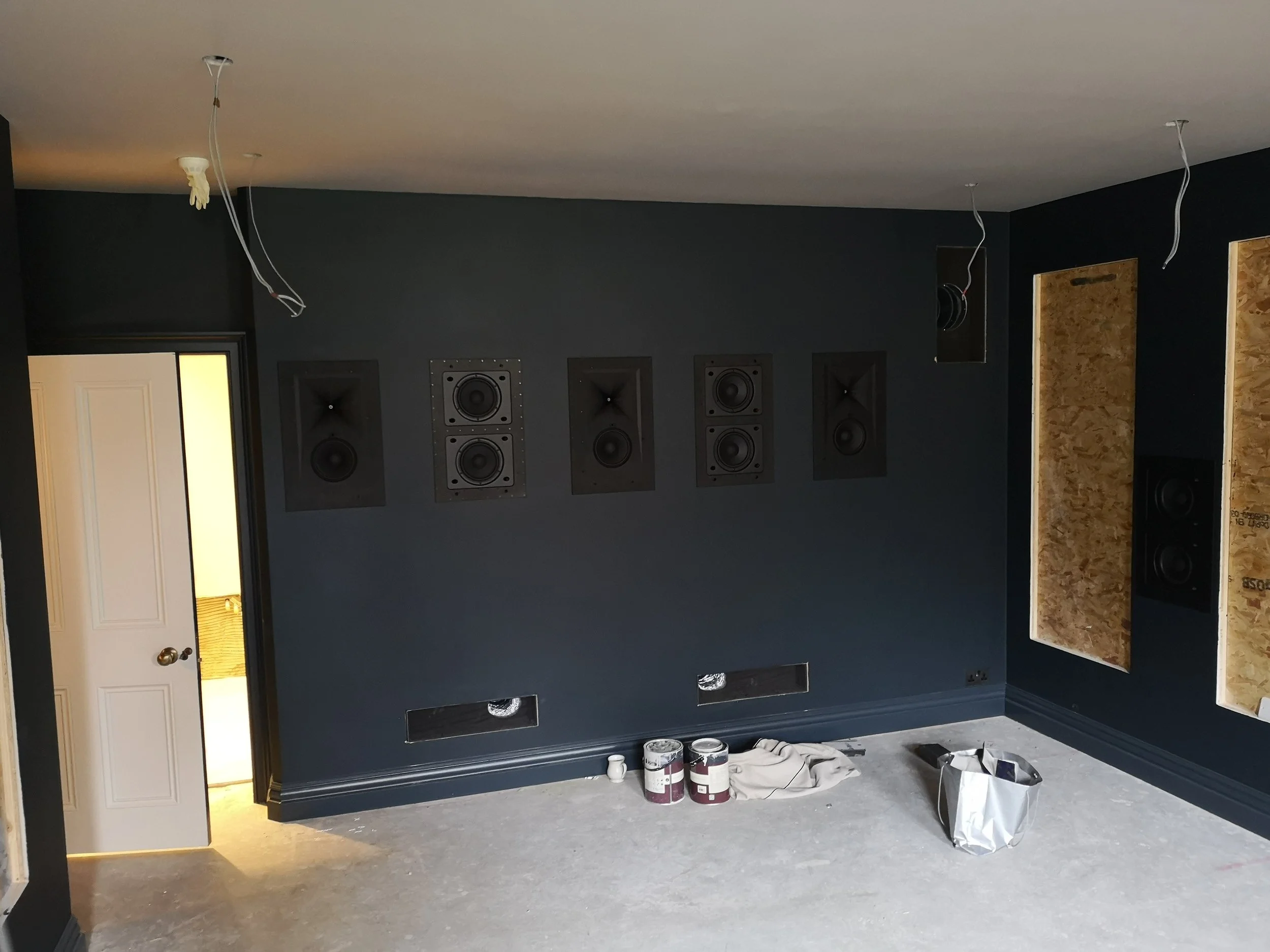

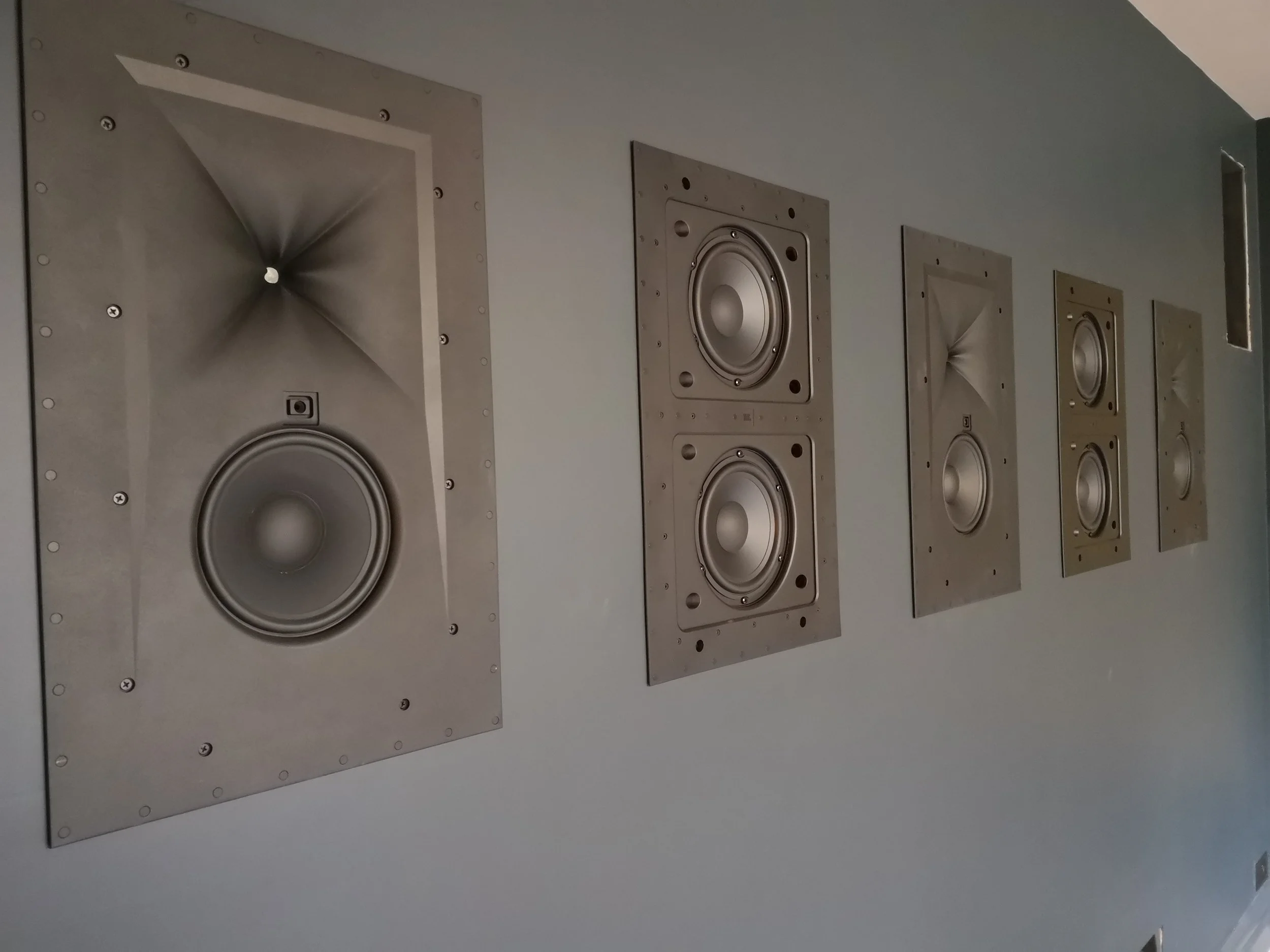

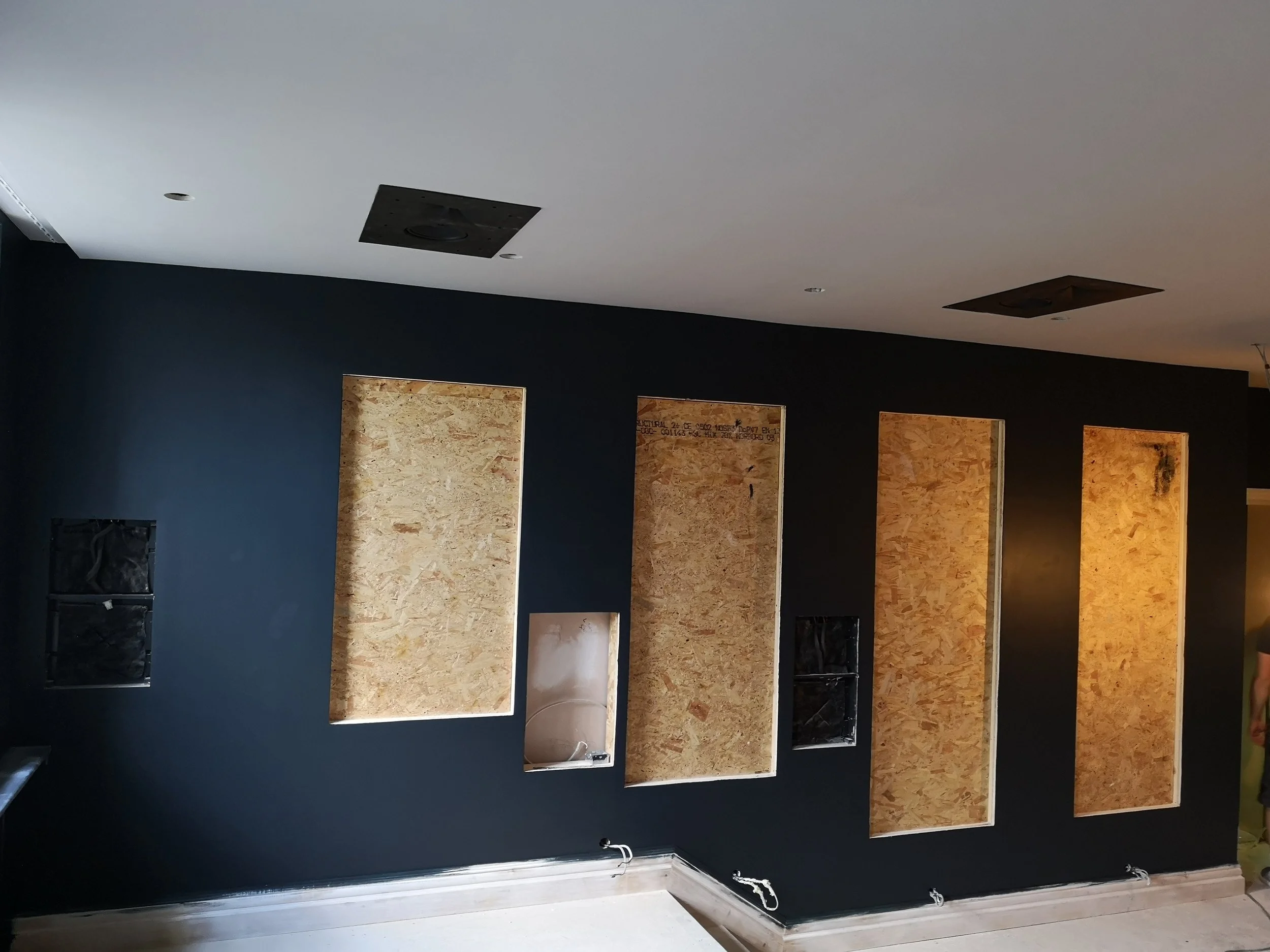

Loudspeakers:
Front left: JBL Synthesis SCL-4
Centre: JBL Synthesis SCL-4
Front right: JBL Synthesis SCL-4
Side left: JBL Synthesis SCL-4
Side right: JBL Synthesis SCL-4
Rear left: JBL Synthesis SCL-4
Rear centre: JBL Synthesis SCL-4
Rear right: JBL Synthesis SCL-4

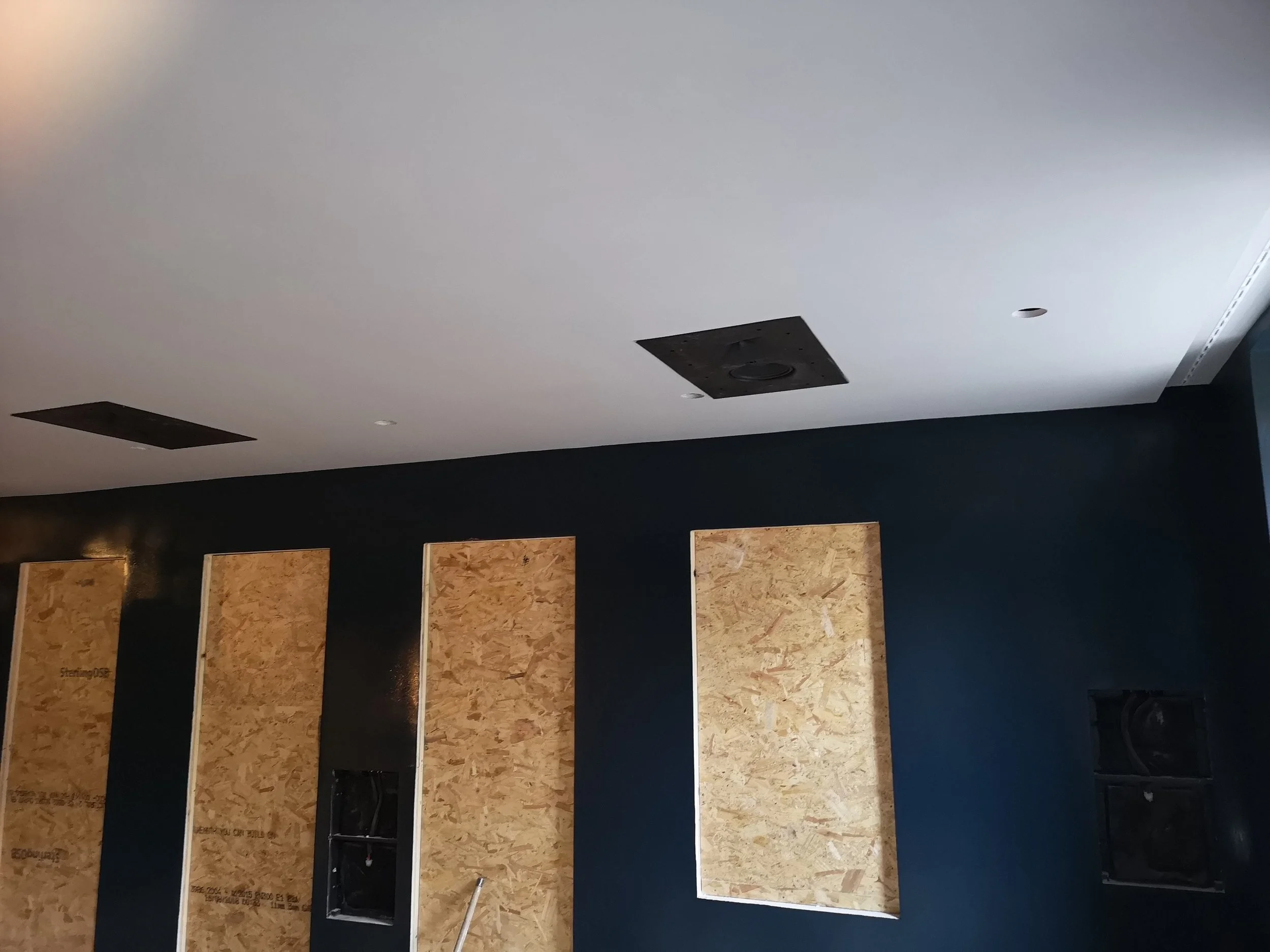

Front left height: JBL Synthesis SCL-4
Front right height: JBL Synthesis SCL-4
Rear left height: JBL Synthesis SCL-4
Rear right height: JBL Synthesis SCL-4
Sub-woofers x4 JBL Synthesis B28W
Loudspeaker Cabling:
Chord Shawline x 150m
Sources:
Kaleidescape Strato 4KUltra HD Movie Player 6TB
Sky Q

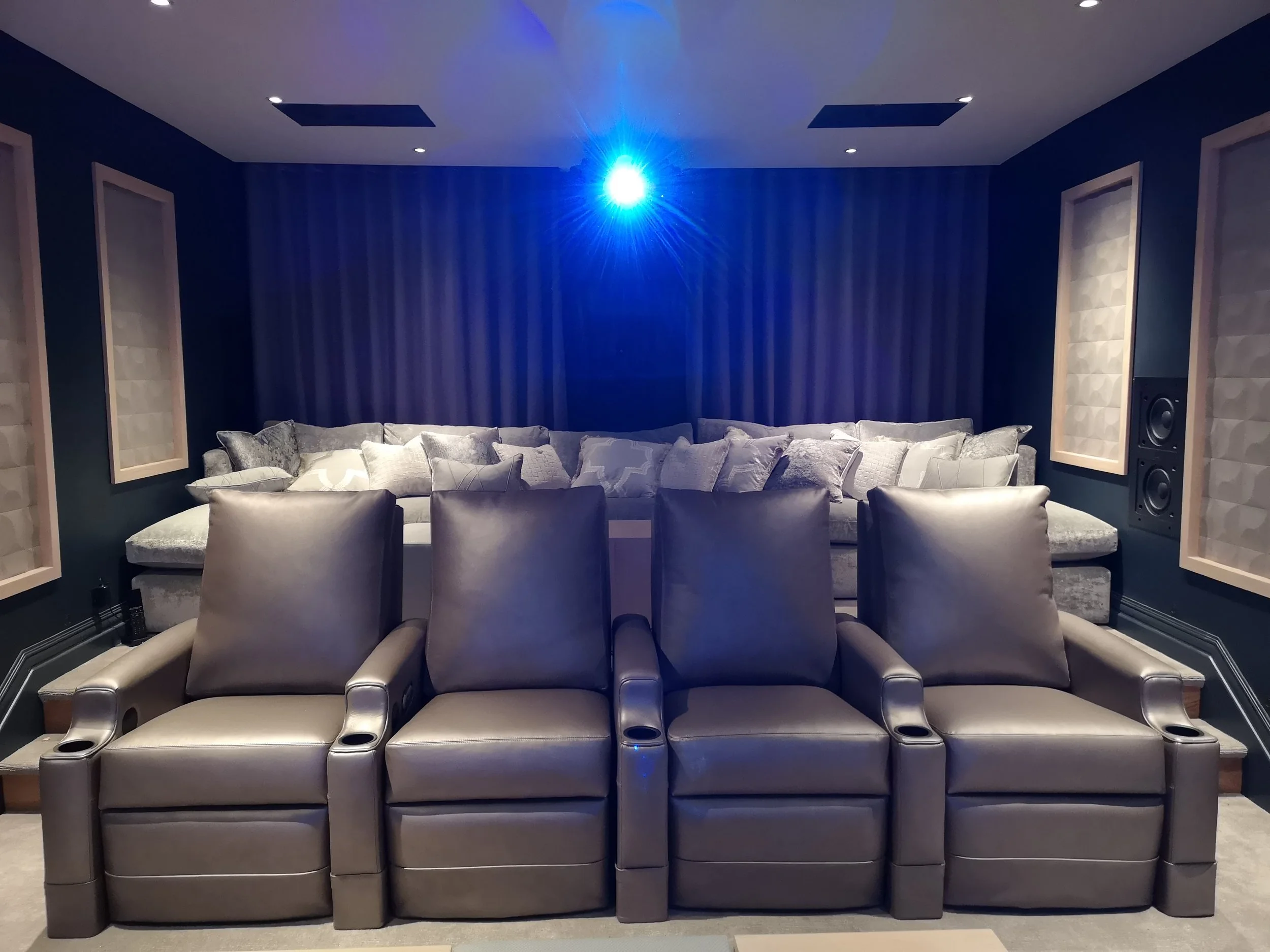

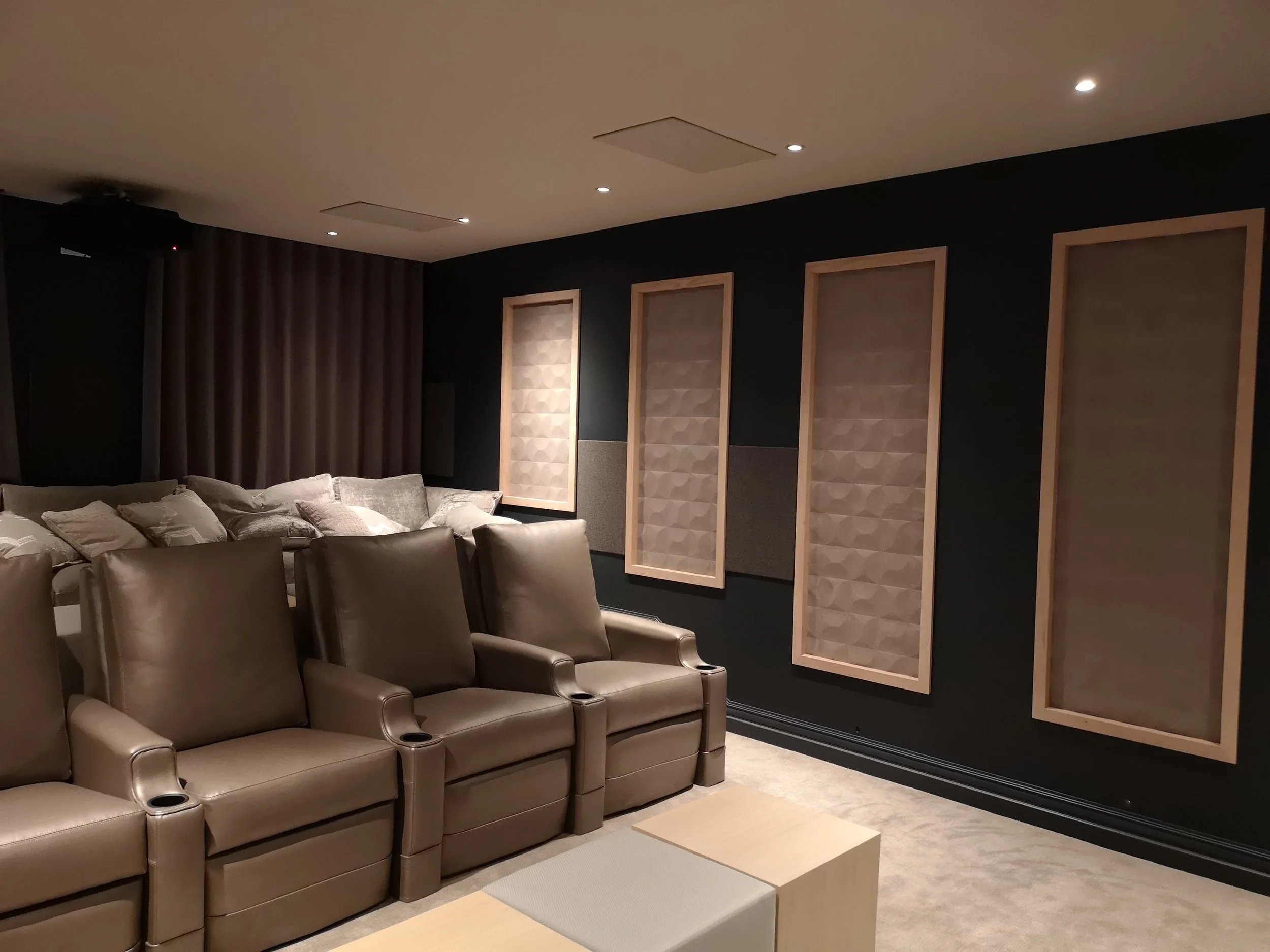

Seating:
Fortress Solo Cinema style 5 Leather/Fabric x2
Fortress Solo Cinema style 5 Leather/Fabric with massaging function x2
Lighting:
Lutron QS Dimmer 4ch
Control:
Crestron RMC3 compact processor
Crestron TSR-310 Handheld touchscreen remote
Crestron C2N-LCDB3 wall mounted LCD touch panel
